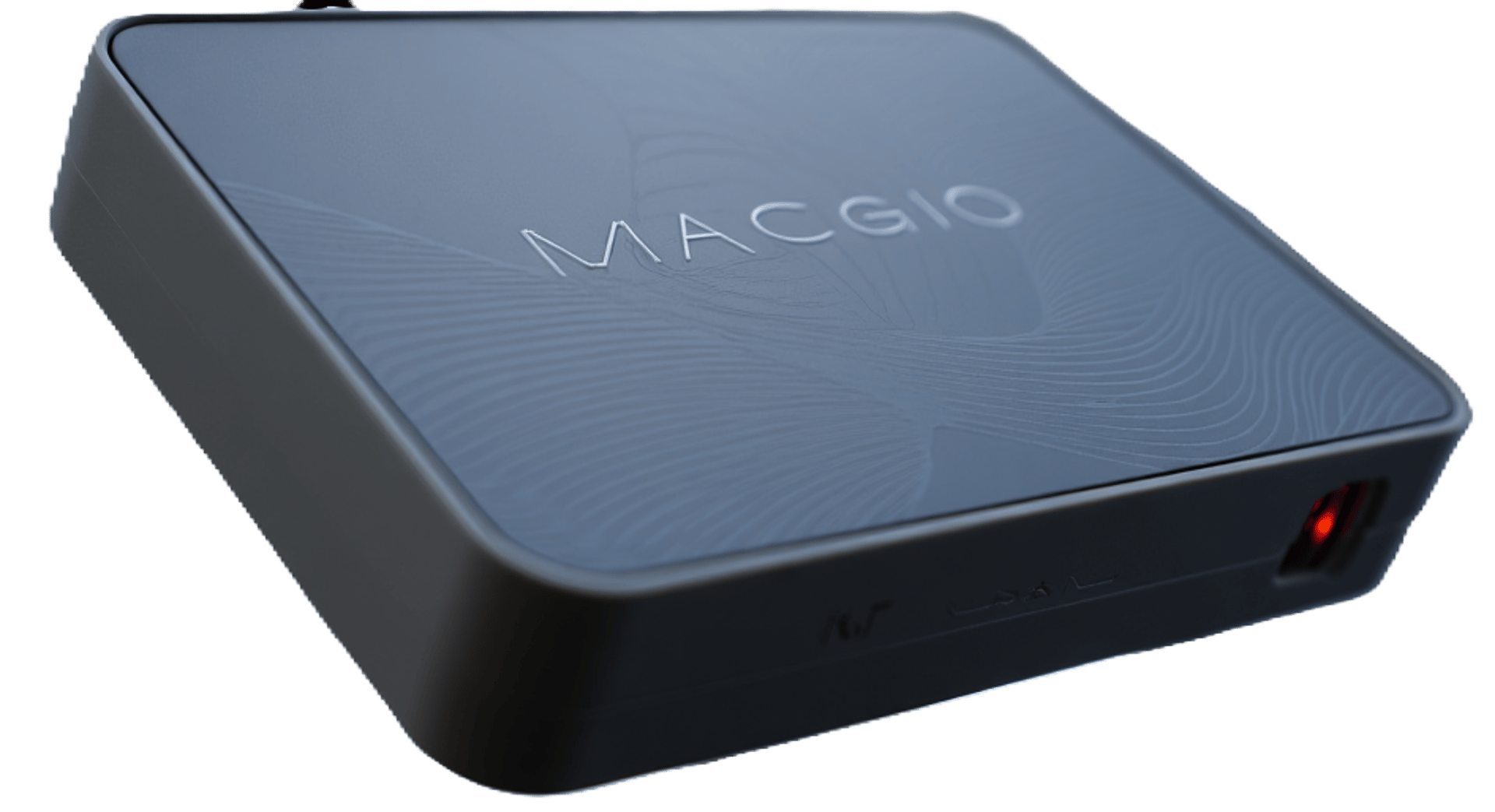

MG vitalsign

Encrypted Vital Signs . Real time . Intelligent Alert

A secured approach to personnel monitoring technology, providing real-time vital data transmission, precise location tracking and mission select intelligent alert. Purpose-built for fire service, search & rescue, and tactical operations, this IoDMT device ensures command centers maintain complete situational awareness of team members operating in high-risk environments.

BLE Biometric Link

Integrate with standard BLE wearable smart sensors

Mesh Network

Movement tracking with breadcrumb

Integrated GNSS

Extended range and resilience network

Each personal is equipped with BLE heart rate sensor and a compact MG vital sign for data transmission

Command is able to set heart rate thresholds and movement for intelligent status alert.

Vital signs and location are transmitted securely over private network to a field command station.

Entire data transmission maintains air gap from public spectrum and encrypted, reducing the risk of interception.

Military and Tactical Challenges

How to maintain soldier and boots on the ground visibility in the field without relying on cellular networks or GPS enabled phones that is subjected to jamming?

Why MG vitalsign ?

Specification

Device UID

12 - character hex string

GNSS

Latitude, Longitude, Altitude

Broadcast Rate

1 msg/sec (configurable)

Payload Encryption

AES 128 ECB

Mesh Communication and Relay

Supported

Vital Signs

Body temperature, oxygen saturation, heart rate (* depending on 3rd part wearable. )

Operating Frequency

200 to 960 Mhz (Regulatory Approval)

Range

Up to 15 km

433 / 868 / 915 Mhz (Standard)

Geo Fencing

Onboard circular / rectangular zones
